德国FISCHER DUALSCOPE FMP100 双功能涂镀层测厚仪

Please also watch our product movie on the homepage!

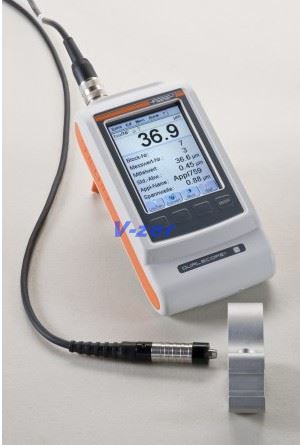

The DUALSCOPE^{?/SUP> FMP100 is a new unique instrument type for coating measurement according to the magnetic induction method and to the eddy current method with automatic detection of the substrate material. With the magnetic induction method you can measure e.g. zinc, chromium, copper, tin or paint, varnish, plastics, enamel on iron or steel. With the eddy current method you can measure e.g. paint, varnish or plastics on aluminum, brass or zinc as well as anodized coatings on aluminum.
On the one hand, the instrument has the practical small size of a handheld instrument. On the other hand, it has all the advantages of the software of PC-based lab instruments.
There are many fields of applications, e.g. on the production floor, for the income inspection, or in the lab. The high precision of the probes ensures a significantly increased measurement range. In addition there are improved, robust probe connectors.
Here are some of the instruments?new features:}

       ^{Elegant, ergonomical design}

       ^{Bright color LC display}

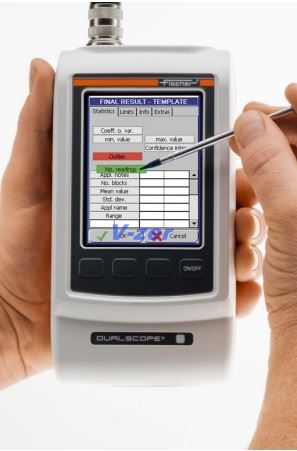

       ^{Touchscreen or soft keys}

       ^{Intelligent probe technology}

       ^{Drag-and-drop printform configuration}

       ^{Printforms in PDF format}

       ^{USB communication and printer port}

       ^{Automatic data backup}

^{Password protection}

^{The instrument is very user-friendly. The operation is straightforward and easy to use. The buttons are self-explanatory. Furthermore a personal computer, printer or keyboard can be connected via the USB port. A new feature is the data export in PDF format.
By using the drag-and- drop feature, the user will be able to create interfaces himself and application-specific printform templates.
Various graphical display formats provide a clear overview. Sum frequency diagram and histogram provide easily seen indications of potential systematic influences in measurement series. It is understood that there is targeted comparisons of measurement blocks.
Production processes can then quickly be evaluated, and differences between various shipments can be pinpointed quickly during the incoming inspection.}

DUALSCOPE^® FMP100是一款全新设计的用于测量镀层厚度的独一无二的仪器。它依据磁感应法和电涡流法，配以底材自动识别系统，进行涂镀层厚度测量。使用磁感应方法，你可以测量钢铁上镀的锌、铬、铜、锡或油漆、清漆、涂料、釉等涂层厚度。使用电涡流法，您能测量铝上油漆、清漆、涂料、釉等涂层厚度，或是铝上的黄铜或锌、阳极氧化铝膜层的厚度。.

东莞威哲精密仪器有限公司是一家专业研究生产精密测量仪器的高新科技公司!主要产品有:圆度仪|圆柱度仪|轮廓度仪|粗糙度仪|一键测量仪|光学测量方案|测量自动化系统|测量投影仪|全自动影像测量仪|二次元|三次元测量仪|恒温恒湿箱|冷热冲击试验箱|烤箱|服务器SAG平面度测量仪|丝锥尺寸自动测量仪等

我司维修和保养德国FISCHER公司所有产品,销售德国FISCHER所有系列测量探头,标准片.联系电话:13712365695何先生

FMP100DUALSCOPE FMP100的详细资料：

特点：

•    明亮的彩色LC显示器

•    触摸屏

•    革命性的探头技术

•    拖曳打印格式配置

•    USB端口和打印机端口

•    PDF格式的打印模板

•    密码保护

•    自动数据备份

技术数据和特征：

遵循标准和惯例：

•    非磁性涂镀层在磁性金属基材上（用遵循DIN EN ISO 2178，ASTM B499的磁感应方法），例如：锌、铬、铜、锡或者油漆、清漆、塑料、瓷釉在铁或钢上

•    不导电的涂层在非磁性金属基材上（用遵循DIN EN ISO 2360，ASTM B244的电涡流方法），例如：油漆、清漆或者塑料在铝、黄铜或者锌上，包括铝氧化膜

•    ASTM D7091-05标准惯例，非破坏性测量非磁性涂层的干膜厚度应用于铁金属和非磁性金属，不导电涂层应用于非铁金属
